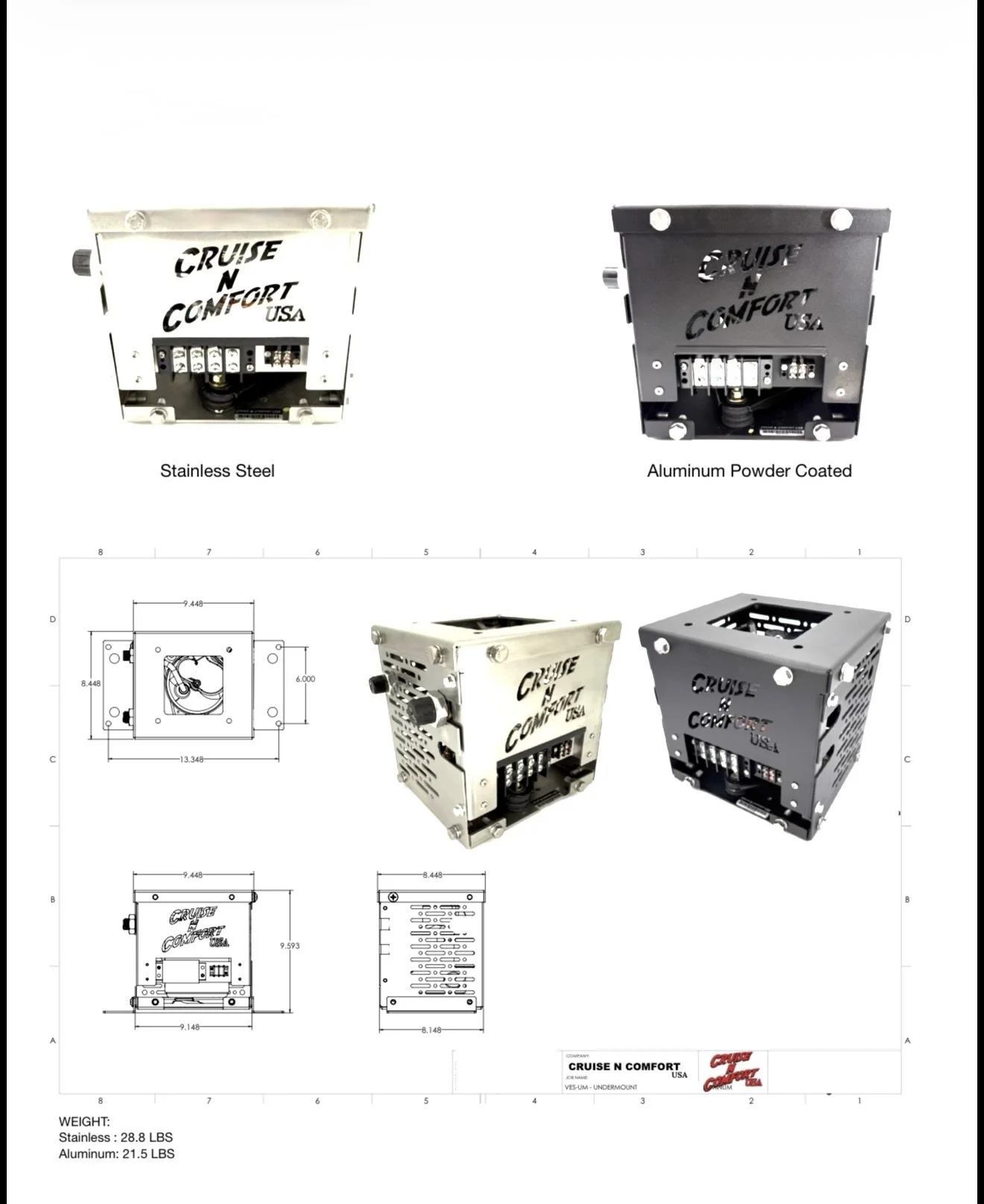

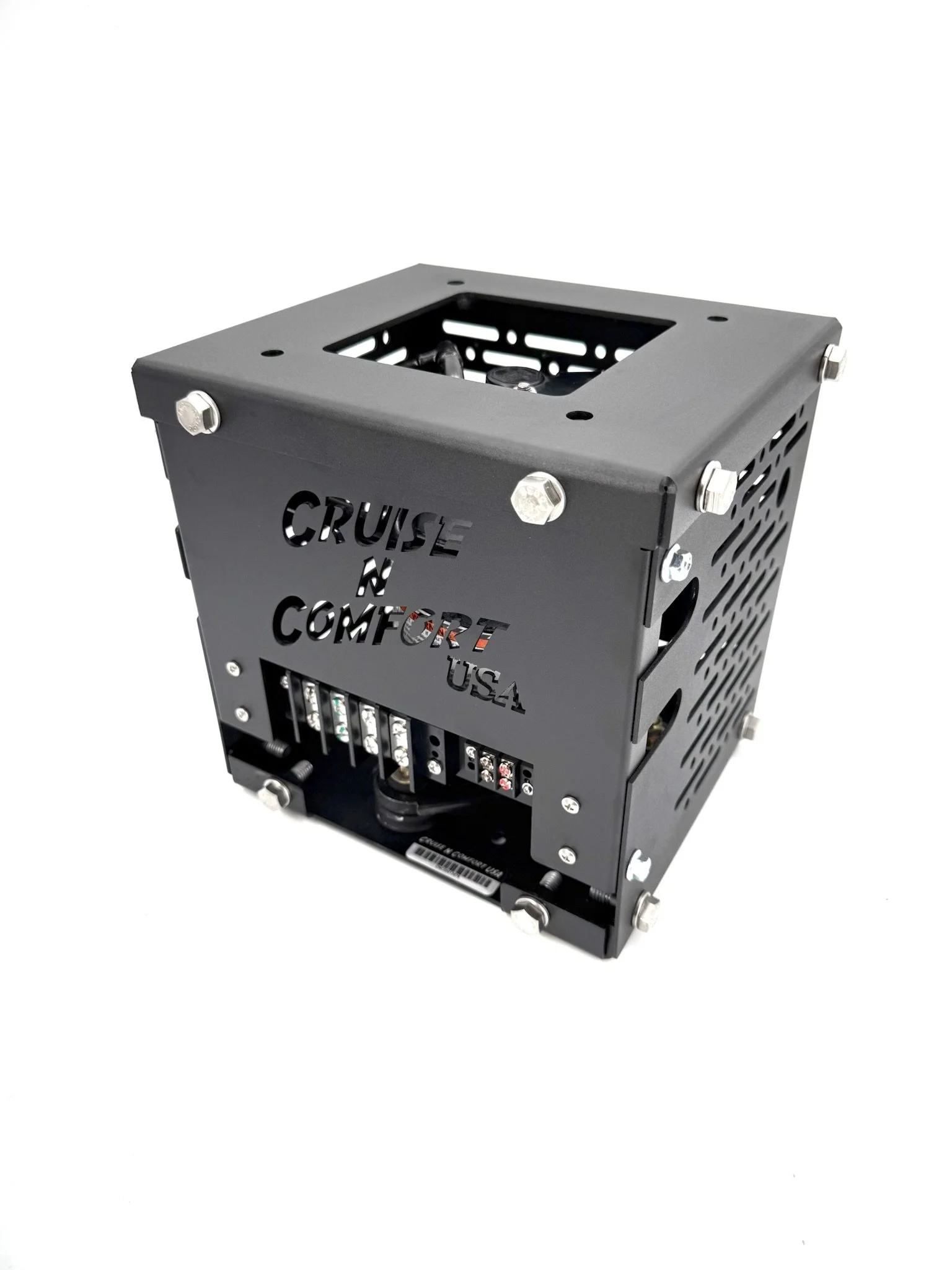

Available with Stainless Steel or Powder-Coated Aluminum Compressor Box

The VES U/M MAXX is a high-capacity undermount DC air conditioning system designed for demanding installations in vans, RVs, boats, commercial vehicles, and off-grid applications.

Built for applications where maximum cooling capacity and flexible component placement are important, the VES U/M MAXX features a remote-mounted compressor assembly, allowing the compressor to be installed inside or outside the vehicle or vessel.

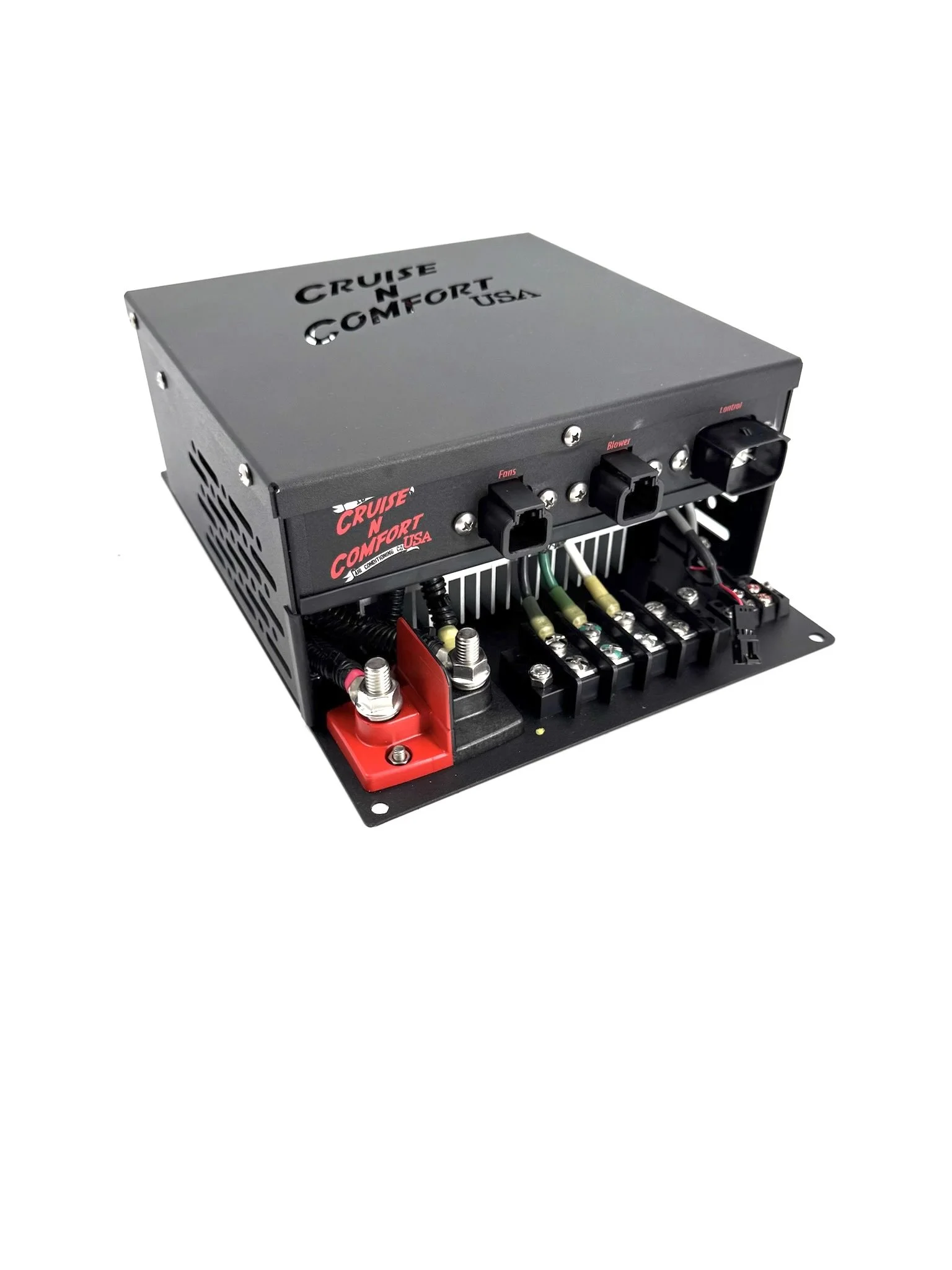

The 48V VES U/M MAXX uses a single compressor and single electronics box and delivers approximately 16,000–20,000 BTU of cooling capacity.

Why Choose the VES U/M MAXX Undermount AC?

✔️ High-Capacity Cooling – Delivers approximately 16,000–20,000 BTU for larger interiors and demanding heat loads.

✔️ Undermount Design – Ideal for applications where rooftop space is limited or needs to remain available for solar panels, roof racks, vents, or other equipment.

✔️ Compact & Modular – The multi-piece design provides flexibility when installing around batteries, cabinetry, tanks, electrical systems, and other equipment.

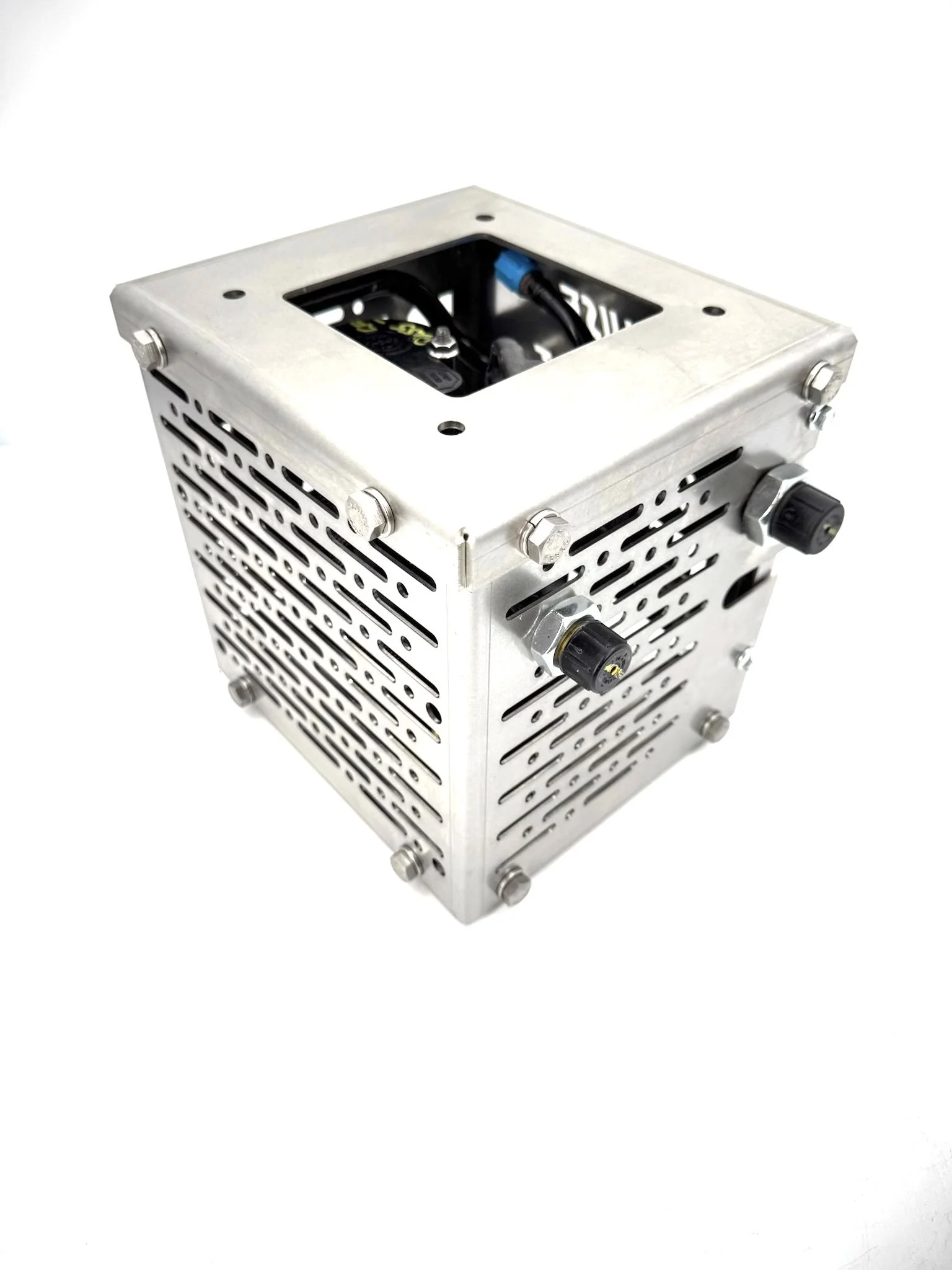

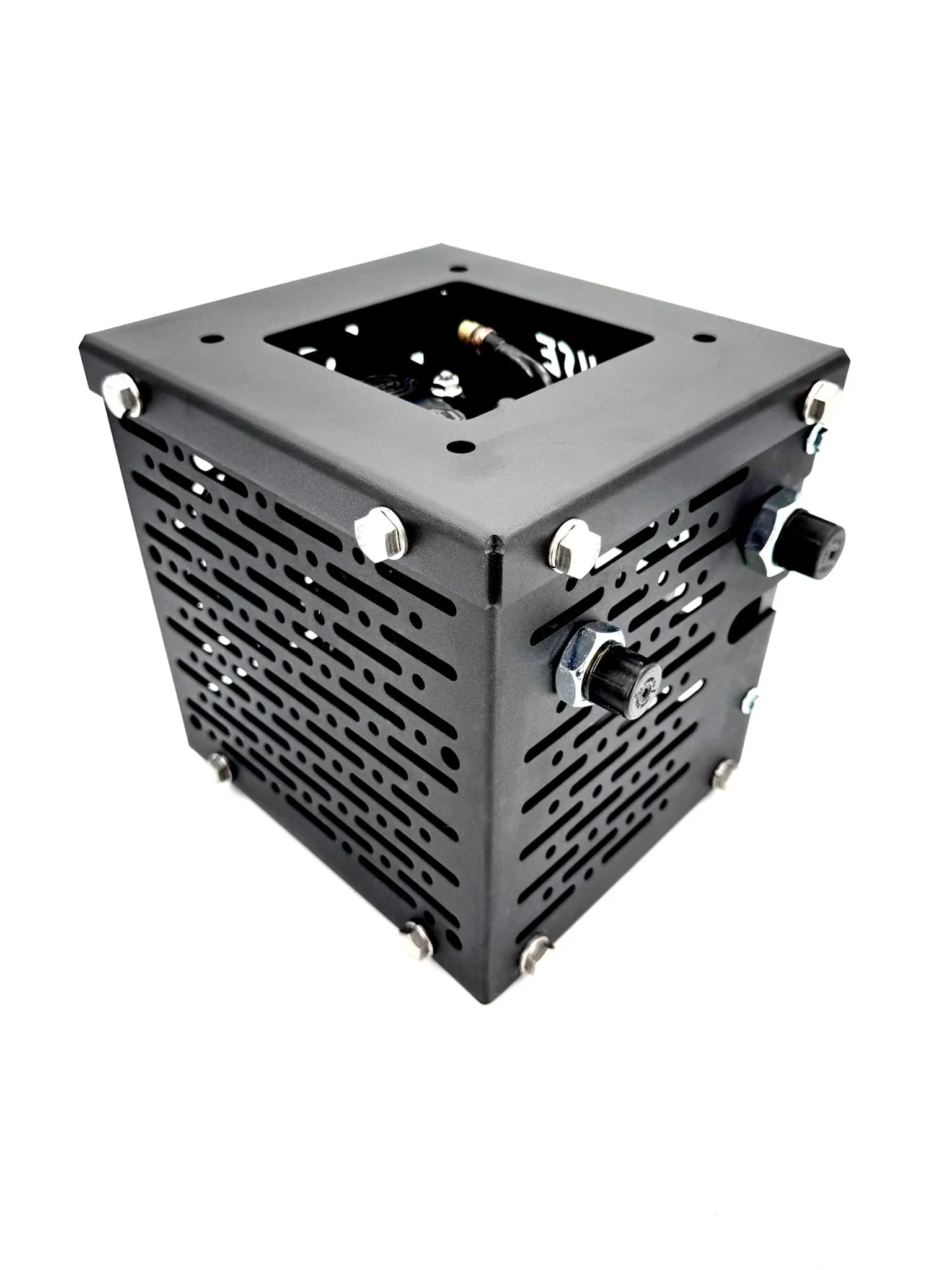

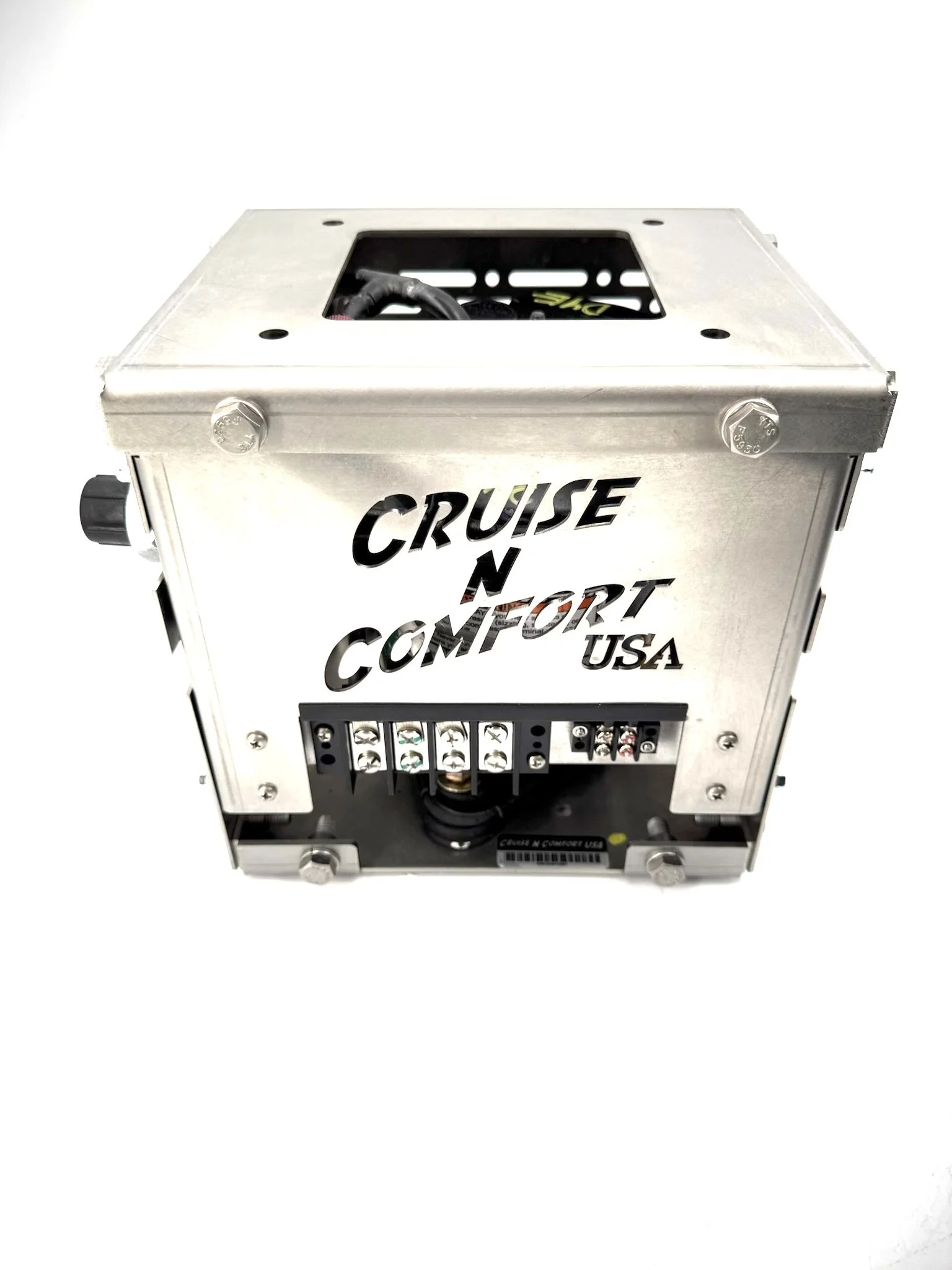

✔️ Rugged Construction – Choose a 304 stainless steel compressor enclosure for maximum durability or a powder-coated aluminum enclosure for reduced weight while maintaining strength.

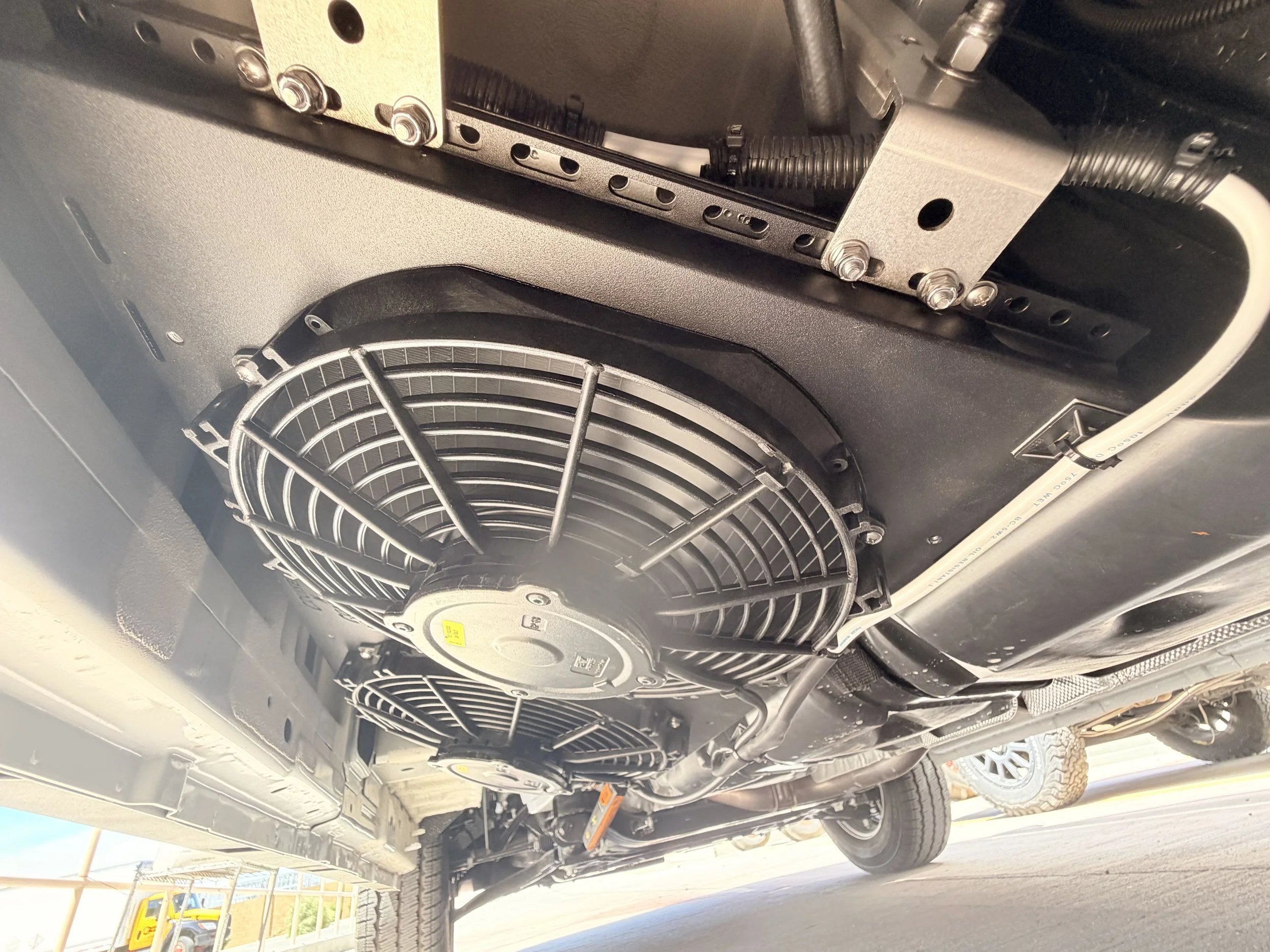

✔️ Flexible Compressor Mounting – The compressor mounting brackets include mounting points on both the bottom and top of the compressor assembly. Bottom mounting points allow the compressor to be secured to a floor, shelf, or platform, while the upper mounting points allow it to be suspended underneath a vehicle or inside a cabinet.

✔️ Multiple Evaporator Configurations – Choose either one MAXX evaporator or two smaller evaporators to match your interior layout and airflow requirements.

Evaporator Options

The VES U/M MAXX can be configured with either one high-capacity MAXX evaporator or two smaller evaporatorsto provide the airflow required by the MAXX system.

Choose from the following configurations:

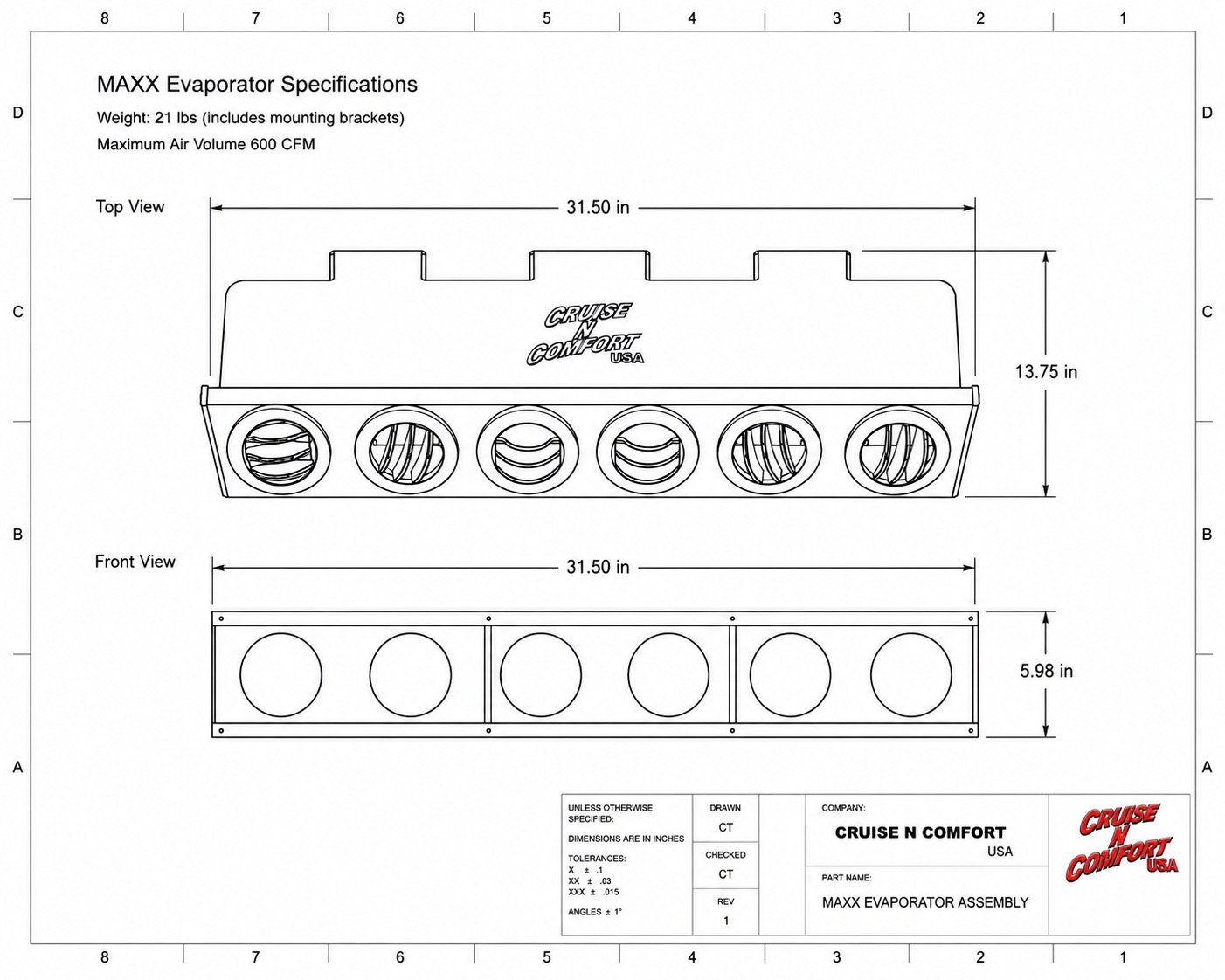

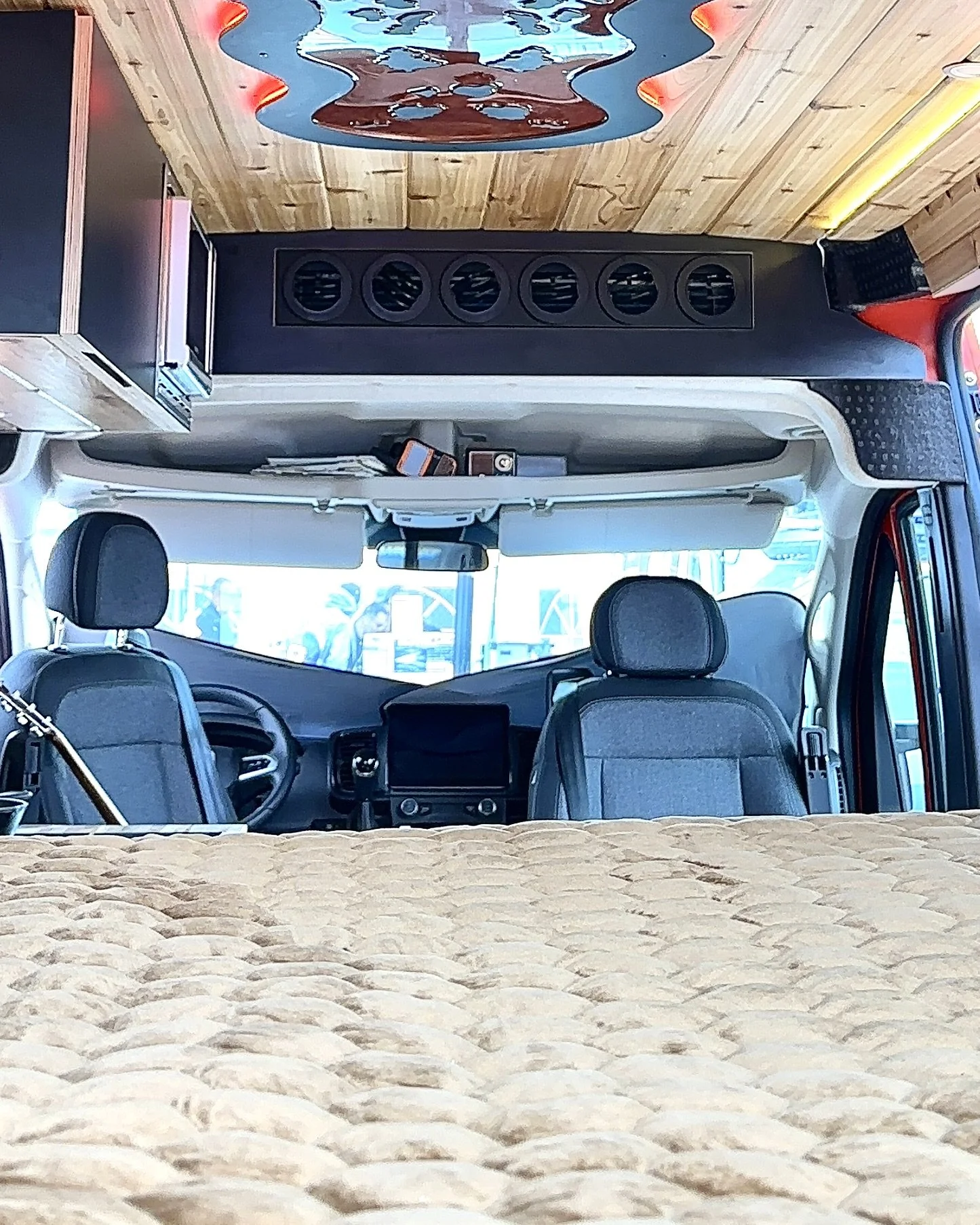

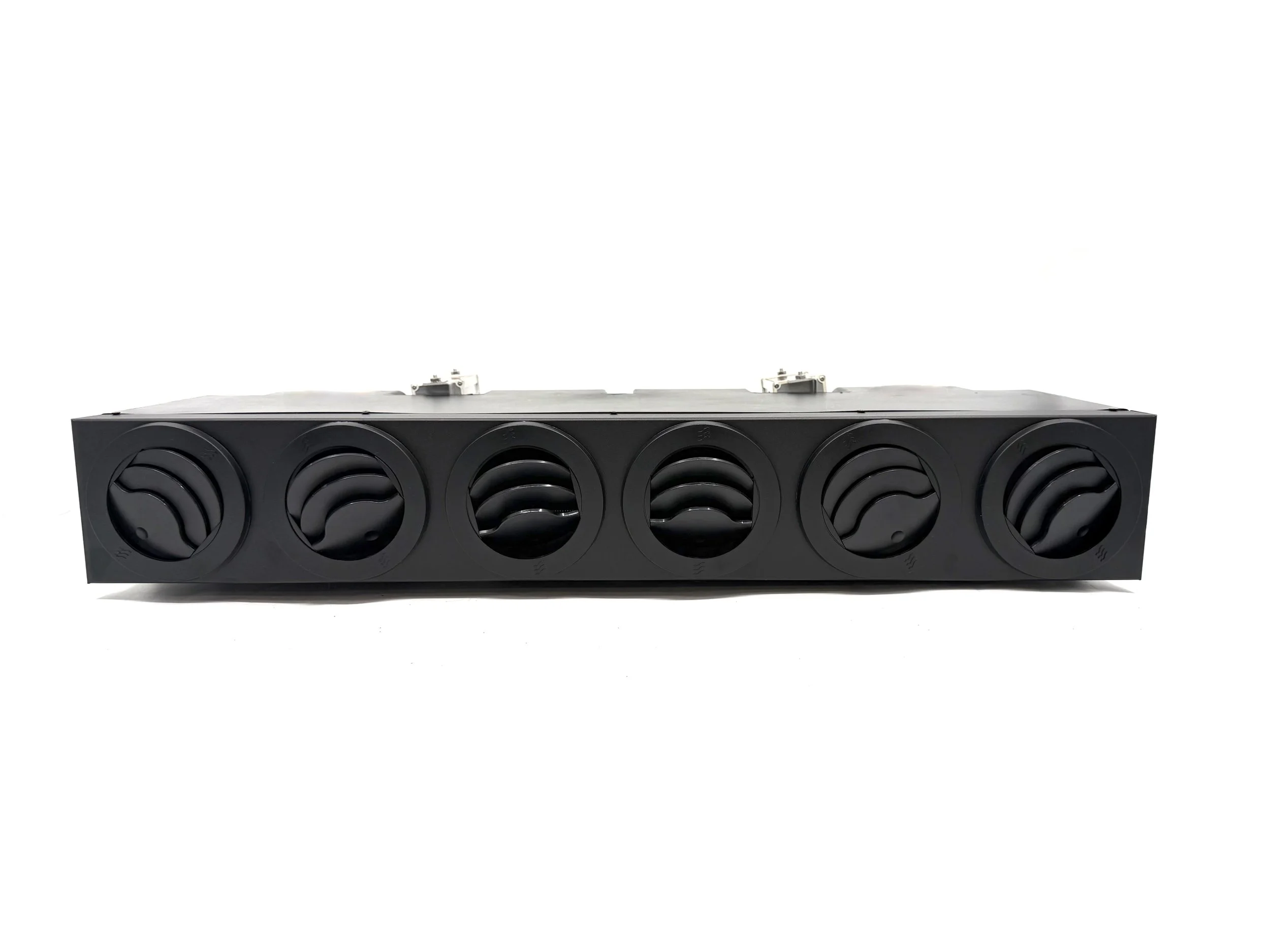

One MAXX Evaporator – High-output, approximately 600 CFM, non-ducted evaporator for maximum airflow from a single location.

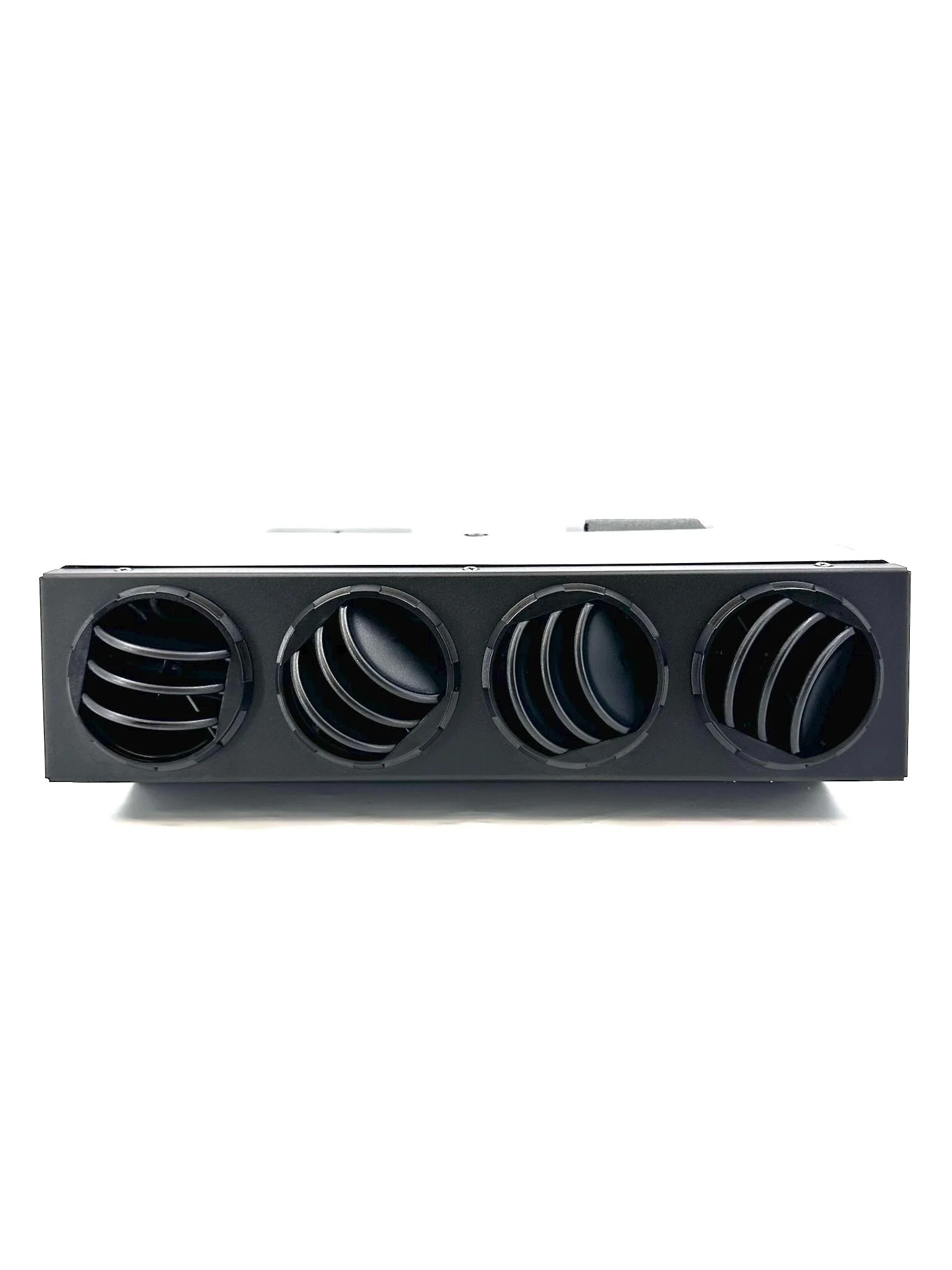

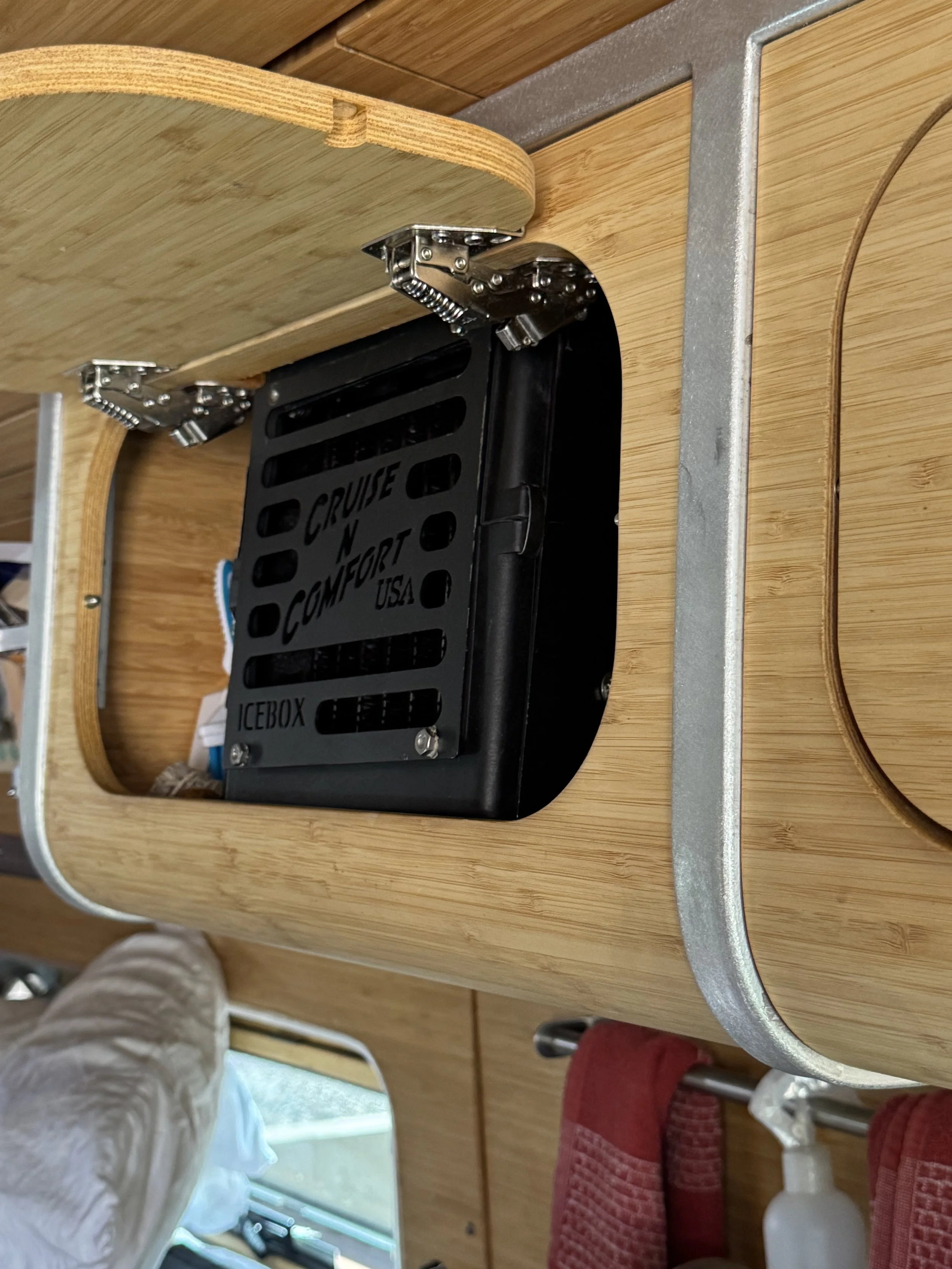

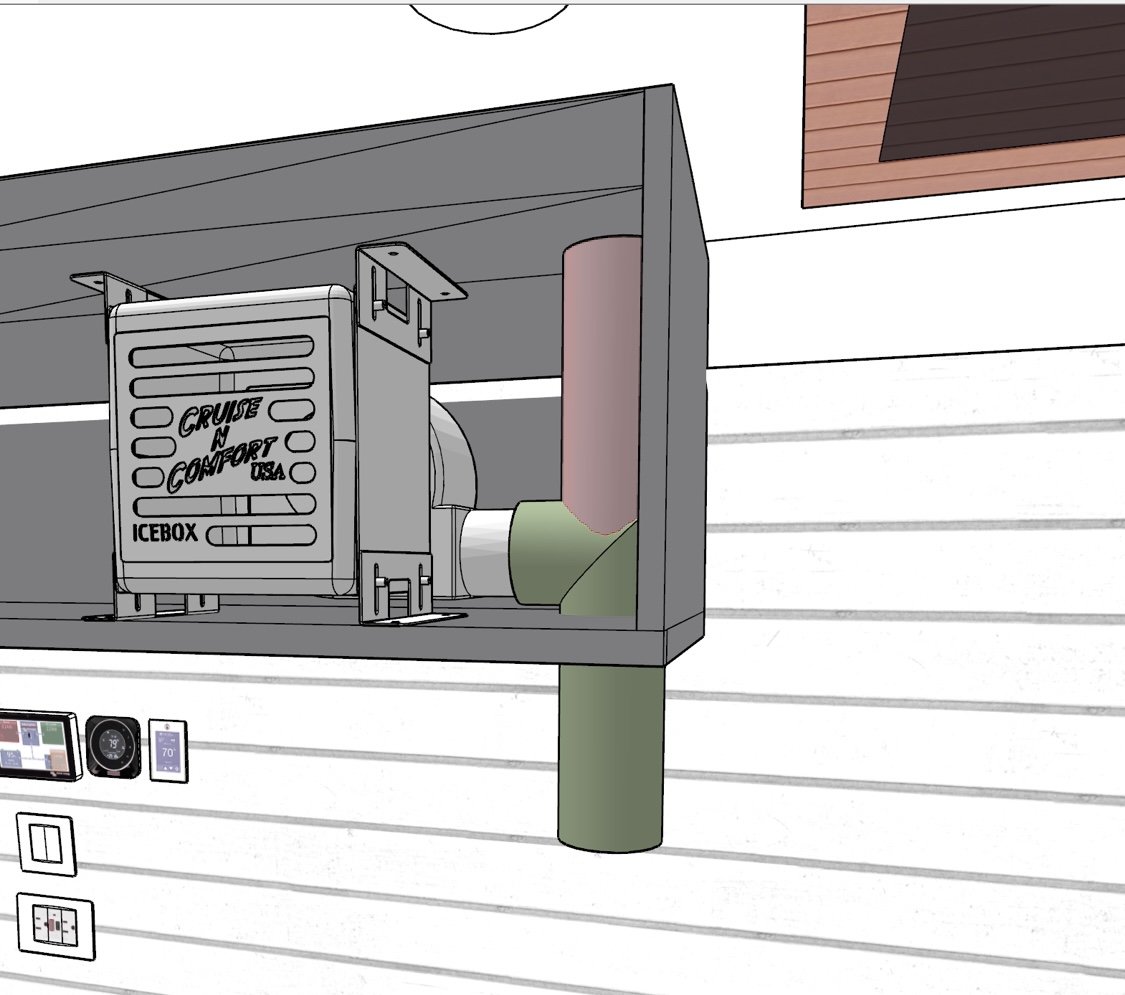

Two ICEBOX Evaporators – Dual ducted evaporators for distributing conditioned air through multiple vents or areas.

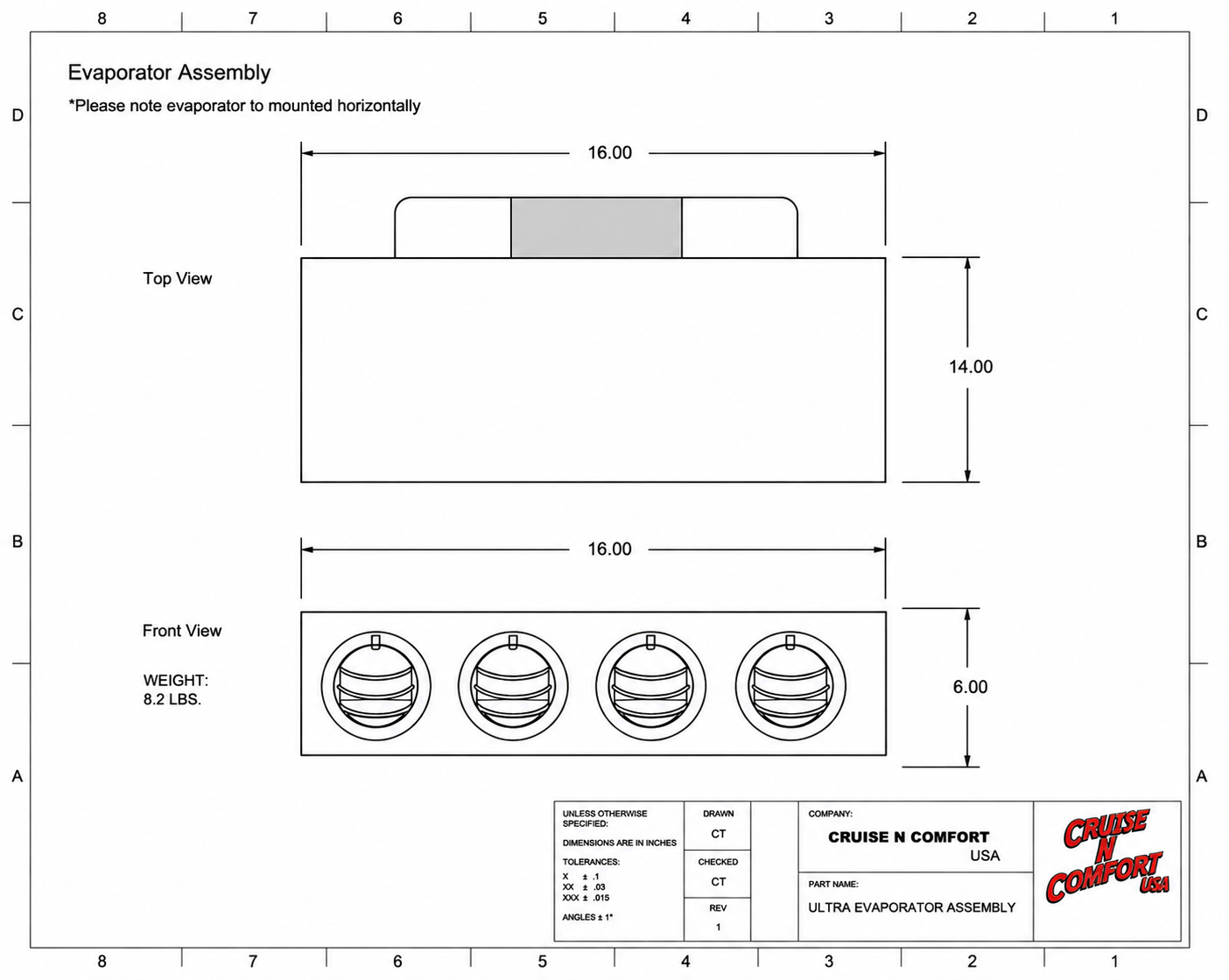

Two ULTRA Evaporators – Dual compact non-ducted evaporators for flexible placement and improved air distribution.
One ICEBOX + One ULTRA Evaporator – Combines a ducted ICEBOX with a compact non-ducted ULTRA for installations that benefit from two different air-delivery styles.

The dual-evaporator configurations allow the two evaporators to be positioned in different areas of the vehicle or vessel, providing greater flexibility in airflow distribution and interior layout.

Powerful Cooling with Flexible Mounting Options

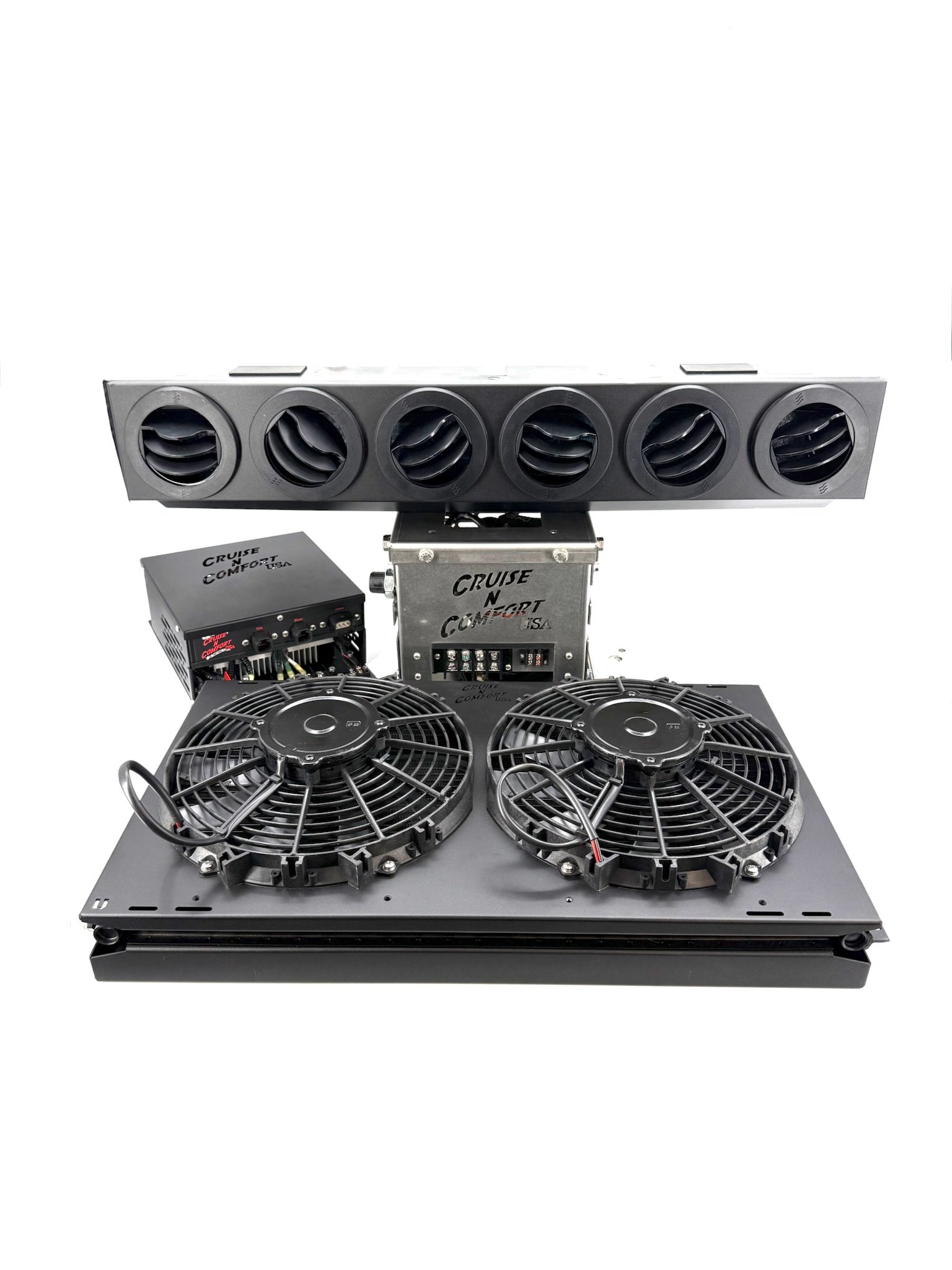

The modular design of the VES U/M MAXX allows the compressor, condenser, evaporator system, and electronics to be positioned independently.

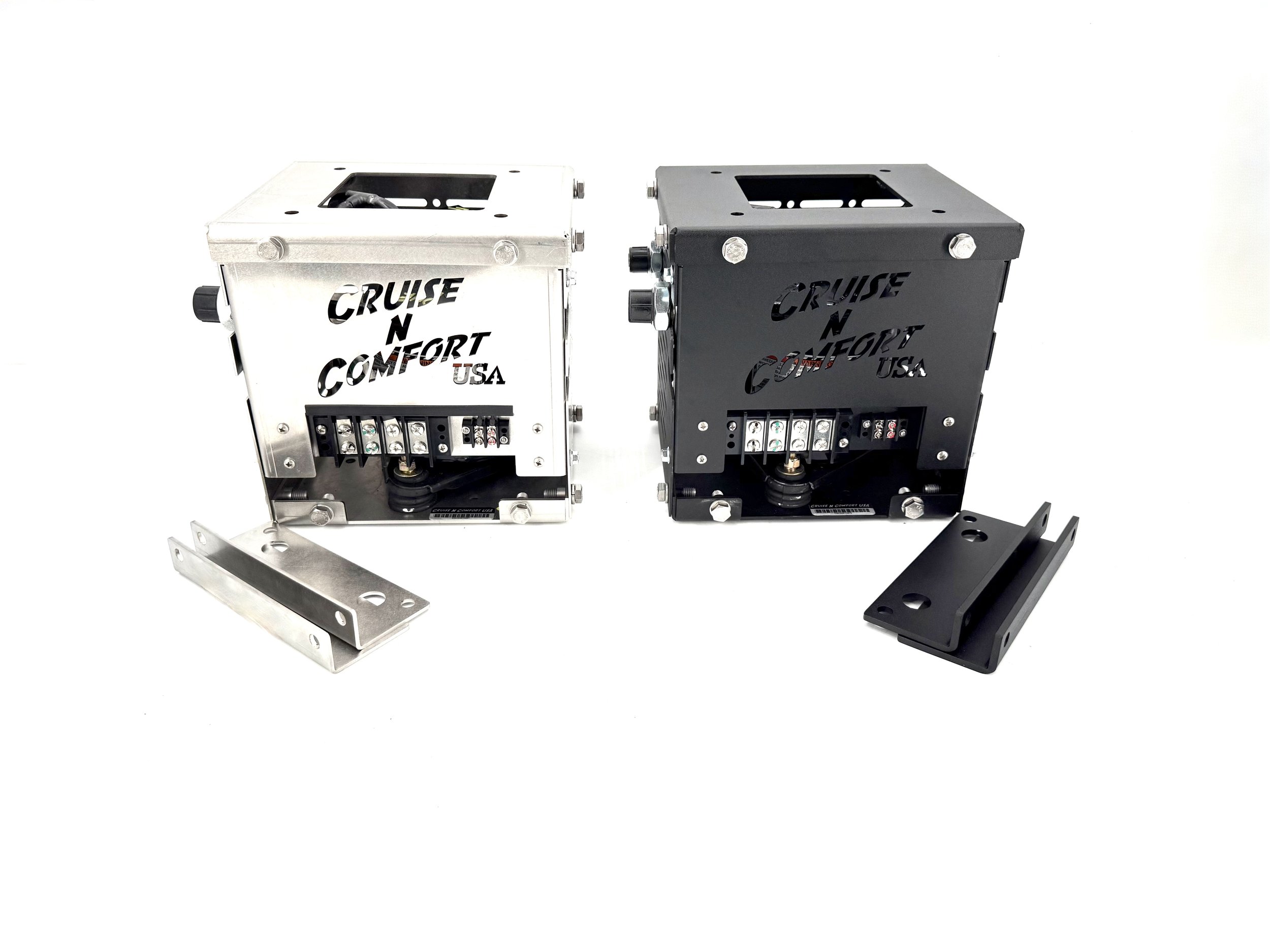

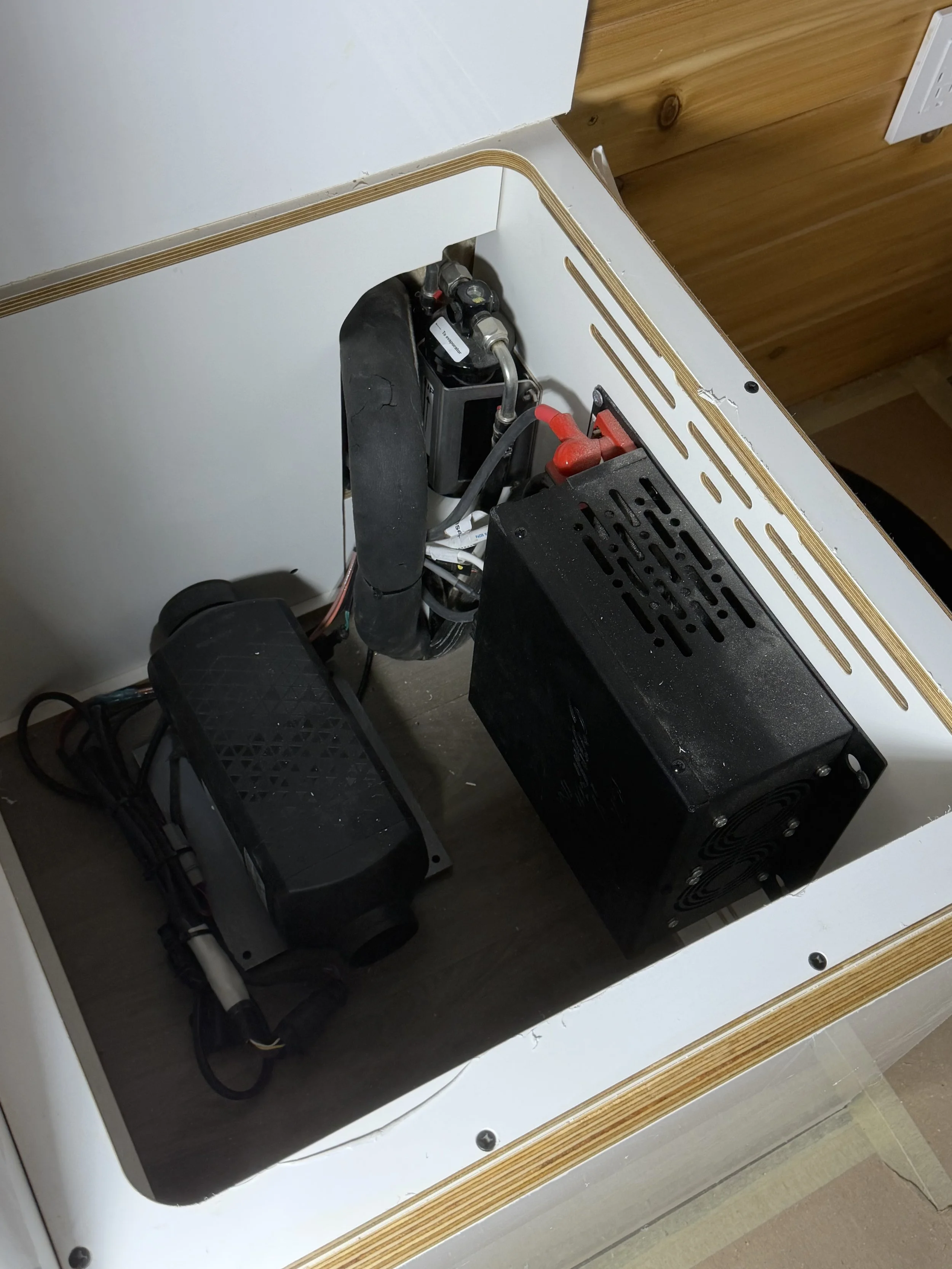

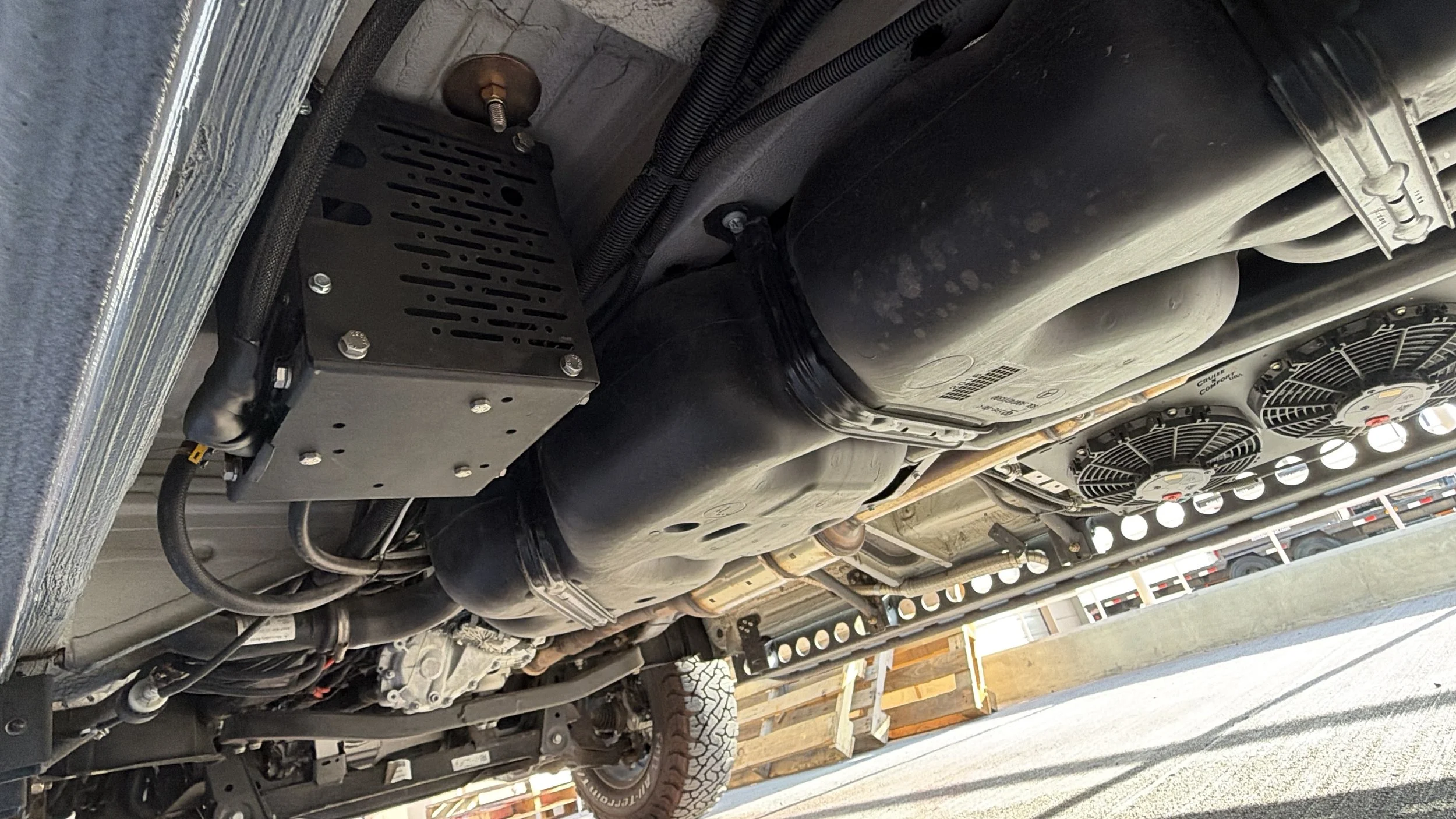

The compressor mounting brackets are designed with mounting points on both the top and bottom of the compressor assembly. This allows the compressor to be mounted upright on a floor, shelf, or platform, or suspended using the upper mounting points for installation underneath a vehicle or inside a cabinet.

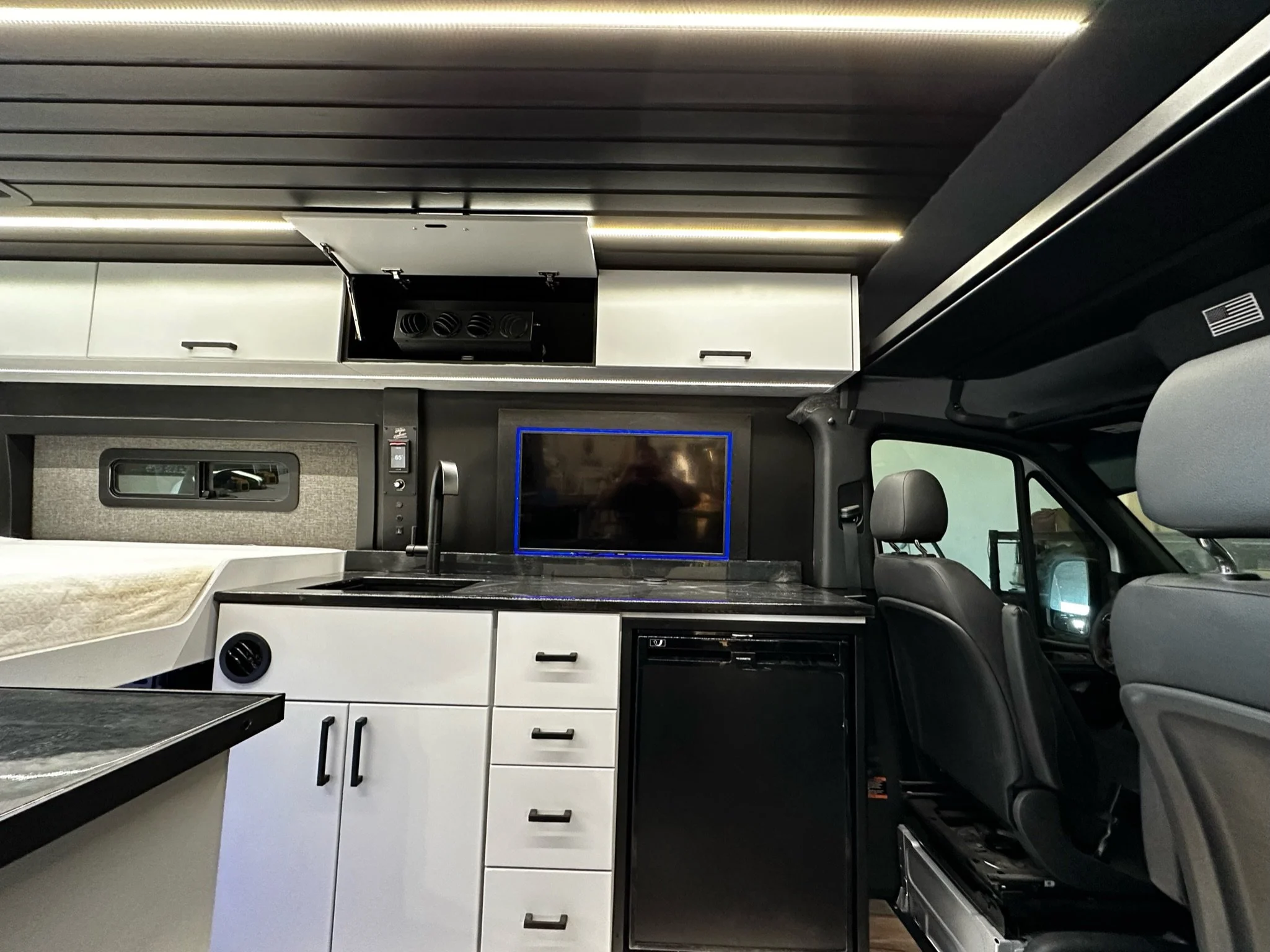

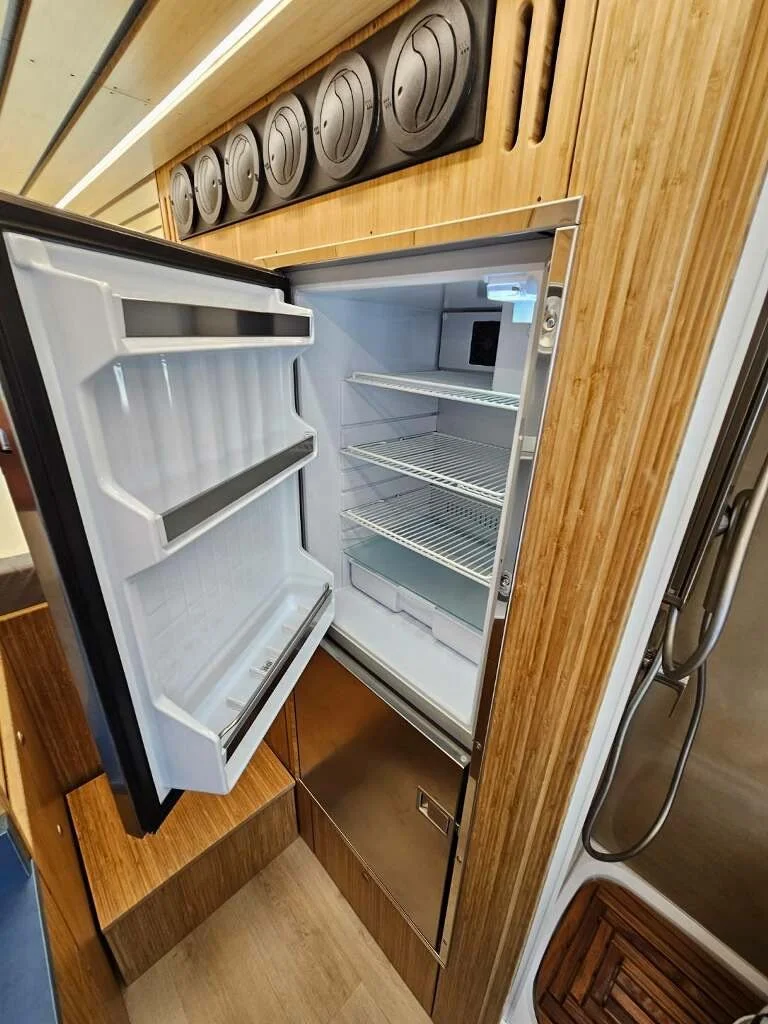

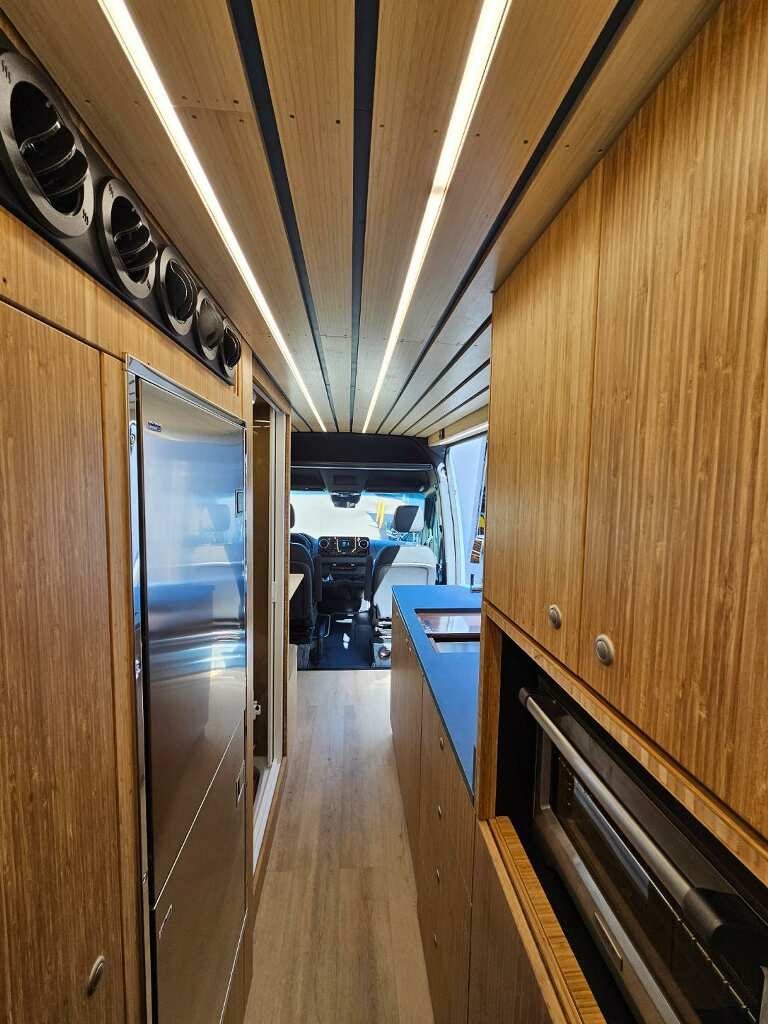

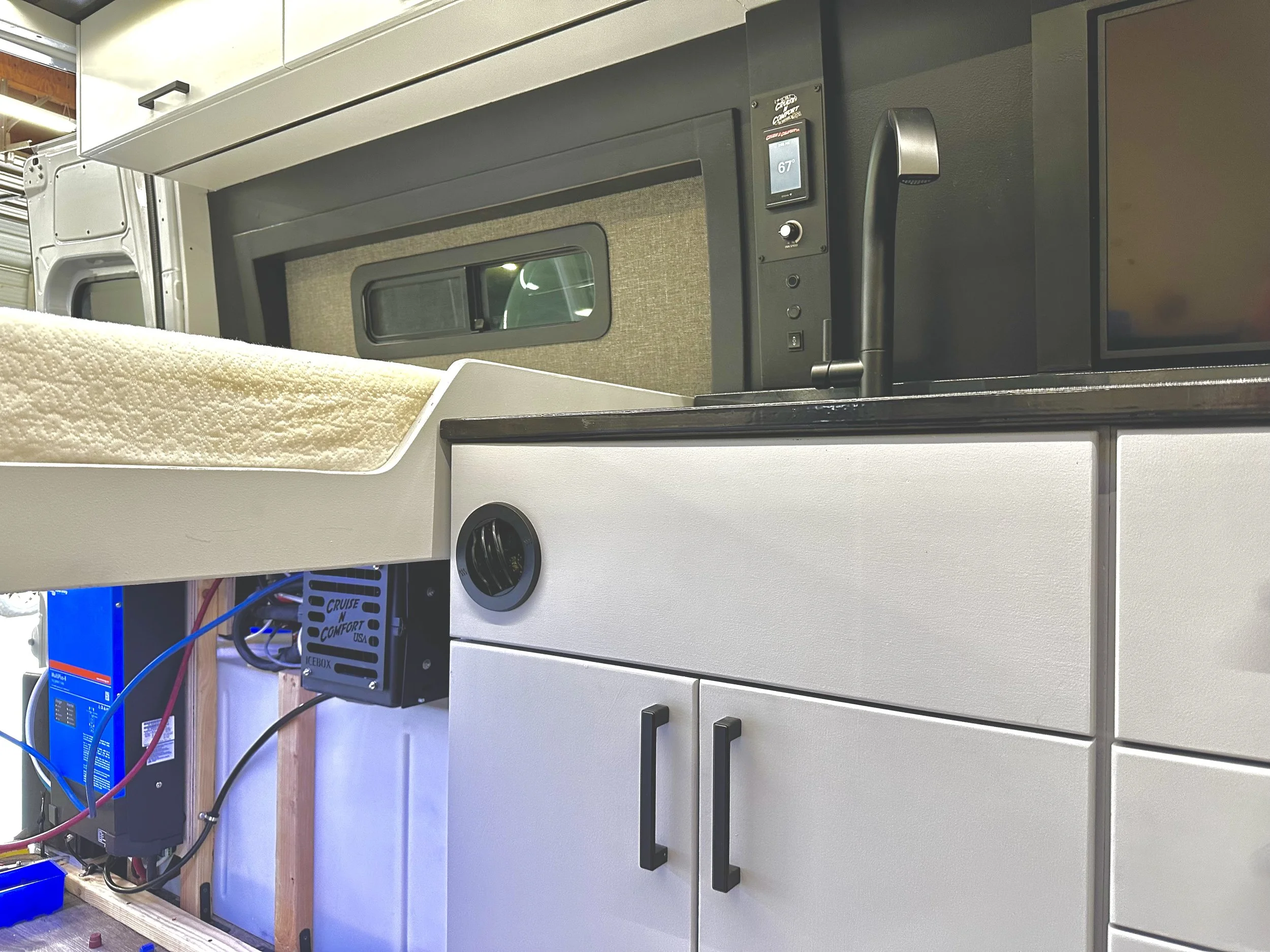

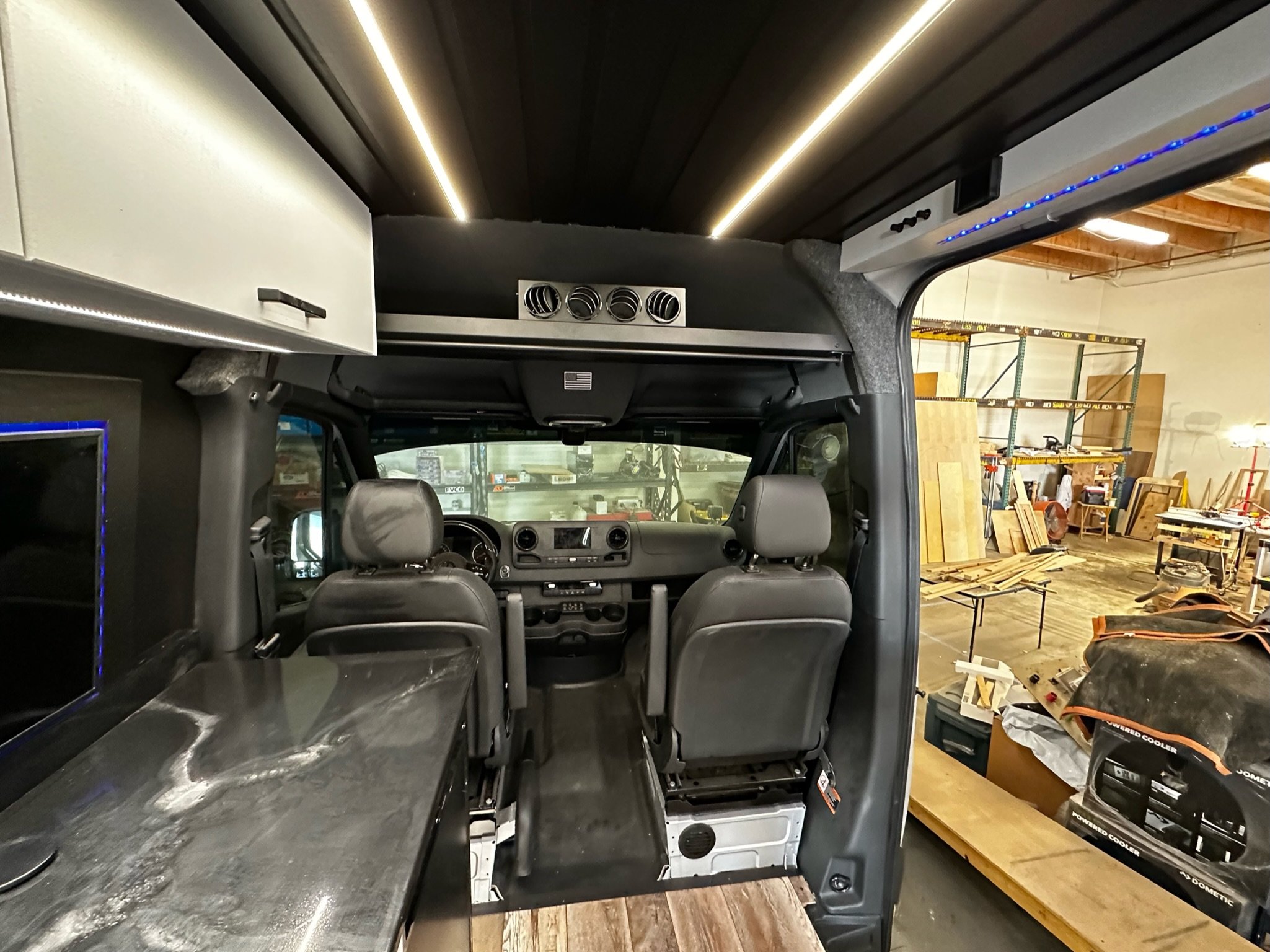

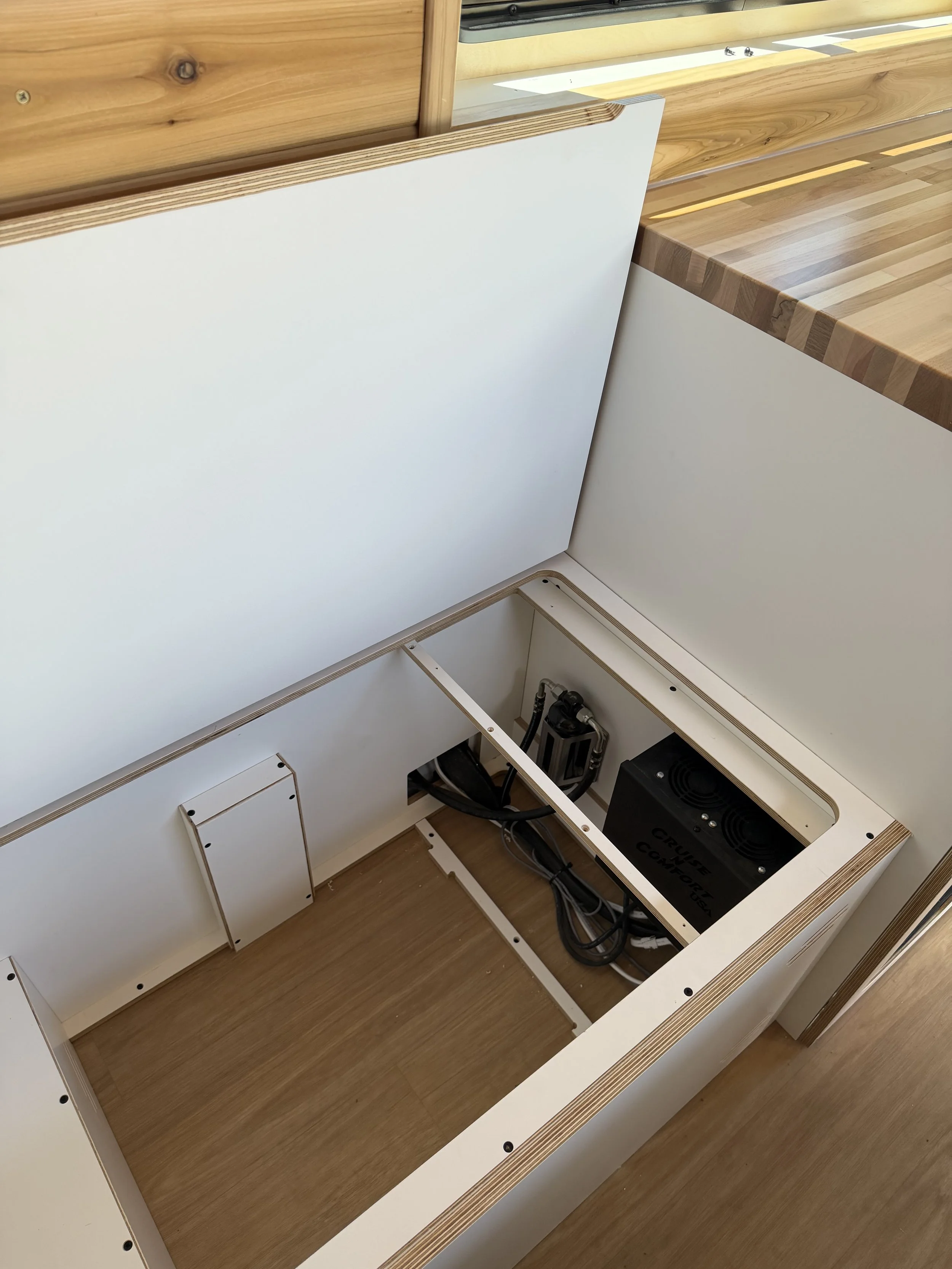

Depending on the evaporator configuration selected, evaporators can be installed in overhead cabinets, lower cabinets, equipment compartments, or other protected interior locations.

Dual-evaporator configurations also allow conditioned air to be distributed to different areas of the vehicle or vessel for improved airflow and temperature distribution.

Maximum Cooling Without Using Rooftop Space

The VES U/M MAXX provides approximately 16,000–20,000 BTU of cooling capacity while keeping valuable rooftop space available.

This makes it an excellent choice for large vans, RVs, expedition vehicles, commercial vehicles, command vehicles, marine applications, mobile workspaces, and off-grid builds where heat loads can be substantial.

High-Capacity Undermount Air Conditioning for Vans, RVs & Marine Applications

At Cruise N Comfort USA, we specialize in high-efficiency, battery-powered DC air conditioning systems designed for severe-duty, high-abuse, and harsh work environments.

The VES U/M MAXX 48V combines 16,000–20,000 BTU of cooling capacity with a modular design that provides maximum installation flexibility without sacrificing valuable rooftop space.

Refrigerant Compatibility: Supports R134a and R513A refrigerants.

Refrigerant hose kits, including custom lengths and pre-sized options, are available in the Upgrades section.
